Products
Brand
Datavan
Model
Glamor POS
Description
-
Adaptable and expandable.
Providing versatility to all kinds of POS application.
Combined the clean and neat lines with robust aluminum construction,
Glamor creates an exquisite and elegant feel, perfectly suit your store decoration.
Specification
| Model number | G-615 | G-715 | G-615S | G-715S(R) |
| LCD & Touch Panel | ||||
| Display | 15” LED-backlight display | |||
| Resolution | 1024 x 768 (default) | |||
| Brightness | 250 cd/m2 | |||
| Touch | Flat Resistive or Projected Capacitive (PCAP) touchscreen | |||
| System Configuration | ||||
| Intel® Processor | Fanless Intel Pineview SoC CPU Atom™ D525 1.8GHz (Dual-core) |
3rd gen desktop Intel CPU (Ivy Bridge) Celeron® 2.4GHz Core™ i3 2.8GHz Core™ i5 2.9GHz |
Fanless Intel Bay Trail SoC CPU Celeron® J1900 2.0 GHz (Quad-core) |
4rd gen desktop Intel CPU (Haswell) Celeron® 2.2 GHz Core™ i3 2.4 GHz Core™ i5 2.7 GHz (i5 CPU with iAMT,RAID support) |
| Memory | DDR3 RAM*2 slots Max. 4GB |
DDR3 RAM*2 slots Max. 16GB |
DDR3 RAM*2 slots Max. 8GB |
DDR3 RAM*2 slots Max. 16GB |
| Storage | 2.5" hard drives (HDD) or flash storage (SSD) Configurable to dual hard drives mSATA | |||
| Power Supply | DC24V external power adapter. AC90 to 264V full range. | |||
| O/S Compatibility | Windows XP/ WEPOS/ POSReady 2009/ Windows 7/ POSReady 7 / Linux Kernel 2.6 or above | Windows XP/ WEPOS/ POSReady 2009/ Windows 7/ POSReady 7 / Windows 8.1 / Linux Kernel 2.6 or above | Windows 7/ POSReady 7 / Windows 8.1 / Linux Kernel 2.6 or above | |

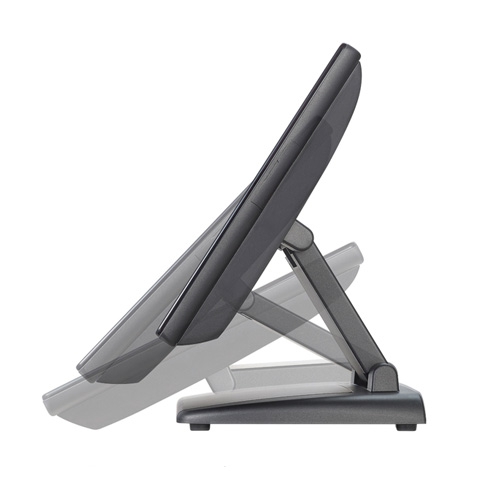

| System Dimensions (L*W*D) | Width: 361mm Height: 313mm (default), 262mm (low-profile), 107mm (fold-flat) Stand depth: 210mm | |||
| System Weight | 6.6Kg (with stand)/ 3.9Kg(without stand) | |||
| VESA Mount | VESA 75*75mm compliant | |||
| Product Certification | CE / FCC/CB/LVD certificated | |||
| Operation Temperature | 0°C to 40°C | |||
| Storage Temperature | -25°C to 70°C/td> | |||
| I/O Connectivity | ||||
| Parallel | Optional, by cable output | |||
| USB2.0 | 4 | 4 | 2 | 3 |
| USB3.0 | 0 | 0 | 2 | 2 |
| eSATAp/USB2.0 combo | 1 | 1 | 1 | 1 |
| RJ45 Powered COM | 4 | 4 | 3 | 3 |
| Gigabit Ethernet | 1 | 1 | 1 | 1 |
| Line Out | 1 | 1 | 1 | 1 |
| PS/2 keyboard | 1 | 1 | 1 | 1 |
| VGA | 1 | 1 | 1 | 1 |
| HDMI | 0 | 0 | 1 | 1 |
| RJ12 cash drawer (12V/24V) | 1 | 1 (dual cash drawer support) | 1 (dual cash drawer support) | 1 (dual cash drawer support) |
| DC12V out | 1 | 1 | 1 | 1 |
| DC24V in | 1 | 1 | 1 | 1 |
| Extension I/O Brick (for G-715SR) | ||||
| 12V Powered USB | n/a | n/a | n/a | 2 |
| 24V Powered USB | n/a | n/a | n/a | 1 |
| USB2.0 | n/a | n/a | n/a | 1 |
| RJ45 COM | n/a | n/a | n/a | 1 |
